荐读:Effect of energy back transfer from Er3+ to Yb3+ ions...

已有 158 次阅读 2025-9-1 10:26 |系统分类:博客资讯

RESEARCH ARTICLE

Effect of energy back transfer from Er3+ to Yb3+ ions on the upconversion luminescence of Er:NaYb(MoO4)2 and Yb,Er:NaBi(MoO4)2

Miaomiao Wang , Mengyu Zhang , Shoujun Ding , Haitang Hu , Chuancheng Zhang , Yong Zou

2025, 18(2): 12.https://doi.org/10.1007/s12200-025-00155-5

Abstract: Under the excitation of a 980 nm laser, the visible upconversion (UC) luminescence of Er3+ ions doped Yb3+ ions selfactivated NaYb(MoO4)2 phosphor and crystal, as well as the Yb3+/Er3+ ions codoped NaBi(MoO4)2 crystal were investigated comprehensively. The results indicate that all three samples exhibit two significant green emission bands and a weak red emission band in the visible band corresponding to the transitions of 2H11/2/4S3/24I15/2 and 4F9/24I15/2 of Er3+ ions, respectively. Through the variable power density spectra of three different samples, the relationship between the energy back transfer (EBT) process of Yb3+-Er3+ ions and the power density point and Yb3+ ion concentration was investigated. The EBT process was observed in both the Er3+ ions doped Yb3+ ions self-activated NaYb(MoO4)2 phosphor and crystal, as confirmed by the luminescence image of the sample. At high power density, the Yb3+ ions self-activated sample exhibited yellow luminescence, with the crystal appearing later than the phosphor. In contrast, the NaBi(MoO4)2 crystal displayed bright green emission within the measured power density range. In addition, by monitoring the relative intensity change of Yb3+ emission in 5 at% Er3+: NaYb(MoO4)2 crystal, the generation of EBT process in self-activated samples at high power density is more directly explained. These experimental results provide a reliable basis for our comprehensive understanding of the EBT mechanism, and also provide a reliable direction for the final determination of the optimal excitation power density for optical temperature measurement.

研究背景上转换(Upconversion, UC)发光是一种通过连续吸收至少两个低能量光子来实现更高能量可见光发射的过程。稀土离子掺杂的UC发光材料因其在生物成像、固态激光、荧光防伪和温度传感器等领域的潜在应用而受到广泛关注。特别是基于荧光强度比(Fluorescence Intensity Ratio, FIR)的光学温度传感器,能够实现非接触、高精度和快速的温度测量。然而,现有文献对UC发光机制的讨论不够全面,尤其是能量回传(Energy Back Transfer, EBT)机制。本研究旨在深入探讨EBT机制,为确定光学温度测量的最佳激发功率点提供指导。

主要内容本研究通过实验研究了在980 nm激光激发下,Er3+离子掺杂的Yb3+自激活NaYb(MoO4)2荧光粉和晶体,以及Yb3+/Er3+离子共掺杂的NaBi(MoO4)2晶体的可见光UC发光特性。研究发现,所有三种样品均显示出两个显著的绿色发射带和一个较弱的红色发射带,分别对应于Er3+离子的2H11/2/4S3/24I15/2  4F9/24I15/2 跃迁。通过监测5 at% Er3+:NaYb(MoO4)2晶体中Yb3+发射的相对强度变化,解释了自激活样品在高功率密度下EBT过程的发生。

创新点本研究通过改变激发功率密度和Yb3+离子浓度,详细研究了Yb3+-Er3+离子之间的EBT过程。通过监测5 at% Er3+:NaYb(MoO4)2晶体中Yb3+发射的相对强度变化,解释了自激活样品在高功率密度下EBT过程的发生。为确定光学温度测量的最佳激发功率点提供指导。

方法

  • 样品制备:通过高温固态法合成了NaYb(MoO4)2: 5 at% Er3+荧光粉,通过Czochralski法生长了NaYb(MoO4)2: 5 at% Er3+NaBi(MoO4)2: 10 at% Yb3+, 1 at% Er3+晶体。

  • 光谱测量:使用光谱仪(Omni-λ5028i和电荷耦合器(Andor DU401 BVF)测量样品的UC发射光谱。

  • 结构分析:使用Bruker D8 Advance X射线衍射仪进行相结构分析。

  • 吸收光谱测量:使用UV-3600光谱光度计测量样品的漫反射UV-Vis-IR吸收光谱。

结果

  • ​XRD分析:所有样品的XRD图谱与标准参考化合物一致,表明样品为纯相态,且掺杂离子的加入未显著改变主晶格结构。

  • 吸收光谱Er3+掺杂的NaYb(MoO4)2样品显示出九个显著的吸收带,分别对应于Er3+4I15/2基态到不同激发态的跃迁。NaBi (MoO4)2单晶在523 nm处观察到一个吸收带,对应于Er3+离子从4I15/2基态到2H11/2激发态的跃迁。

  • UC发光特性:所有样品在可见光波段显示出两个显著的绿色发射带和一个较弱的红色发射带。

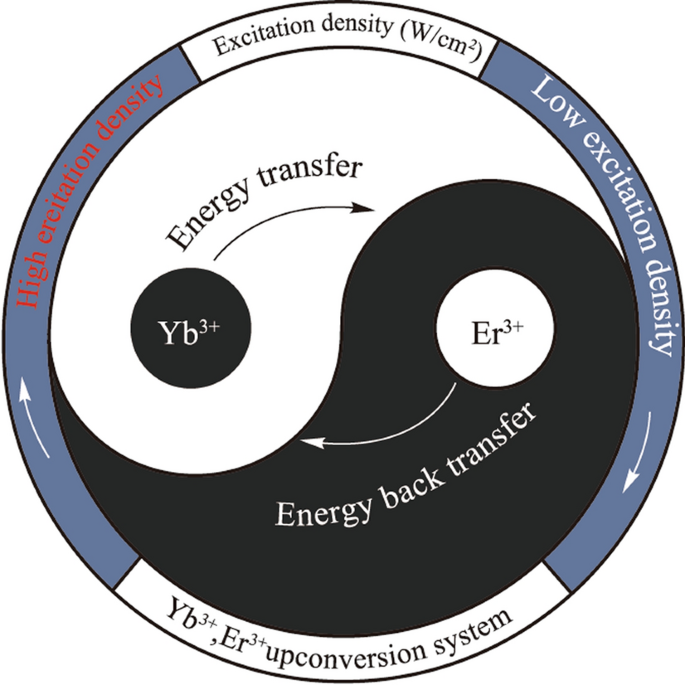

  • ​EBT过程:通过监测5 at% Er3+: NaYb(MoO4)2晶体中Yb3+发射的相对强度变化,直接观察到在高功率密度下EBT过程的发生。实验结果表明,EBT过程在高Yb3+离子浓度下更为显著,导致绿色UC发光被抑制,红色UC发光增强。

结论本研究通过实验验证了EBT机制,并为确定光学温度测量的最佳激发功率点提供了可靠的指导。研究结果表明,高Yb3+离子浓度促进了Yb3+-Er3+离子之间的EBT过程,导致Er3+离子的绿色发光被抑制,红色发光增强。此外,晶体(长程有序结构)比荧光粉(局部有序结构)表现出更弱的EBT过程,这可能归因于晶体的热稳定性更好。这些发现为深入理解EBT机制提供了可靠的基础,并为光学温度测量的最佳激发功率点提供了指导。
